[IACS UR E27] Untrusted Network – 33 Software Process & Device Authentication

by 하늘이데아 2026. 5. 25.
반응형

IACS UR E27 - Software Process & Device Authentication



**A shore-side attacker doesn't need to sleep. Your ship's login portal shouldn't let them keep trying indefinitely.**

Most maritime OT systems facing the internet have no limit on failed login attempts. That's not an oversight — it's an open invitation to brute-force every credential on board.



**What UR E27 Requires**

For any computer-based system (CBS) with untrusted network interfaces, IACS UR E27 mandates a hard technical limit on consecutive failed login attempts within a defined time window. Once that threshold is breached, the system must lock out the account or throttle access automatically — no exceptions, no manual intervention required.



**Why This Matters at Sea**

A vessel's ECDIS, remote monitoring gateway, or crew-facing network portal may be reachable from the open internet. Shore-side threat actors running credential-stuffing tools can attempt thousands of password combinations per minute.



Without lockout controls, a single exposed system becomes a persistent target. A successful brute-force entry into an OT system at sea — where response time is measured in hours, not minutes — can mean loss of navigational control, machinery manipulation, or disruption of safety systems with no immediate expert support available.



The geography of maritime operations makes recovery from a breach uniquely costly.



**IEC 62443-3-3 Technical Context**

SR 1.11 is classified as an SL-2 through SL-4 requirement in IEC 62443-3-3, reflecting that brute-force prevention is considered a baseline for any system exposed to adversaries with meaningful capability — which describes every internet-facing shipboard system by default.

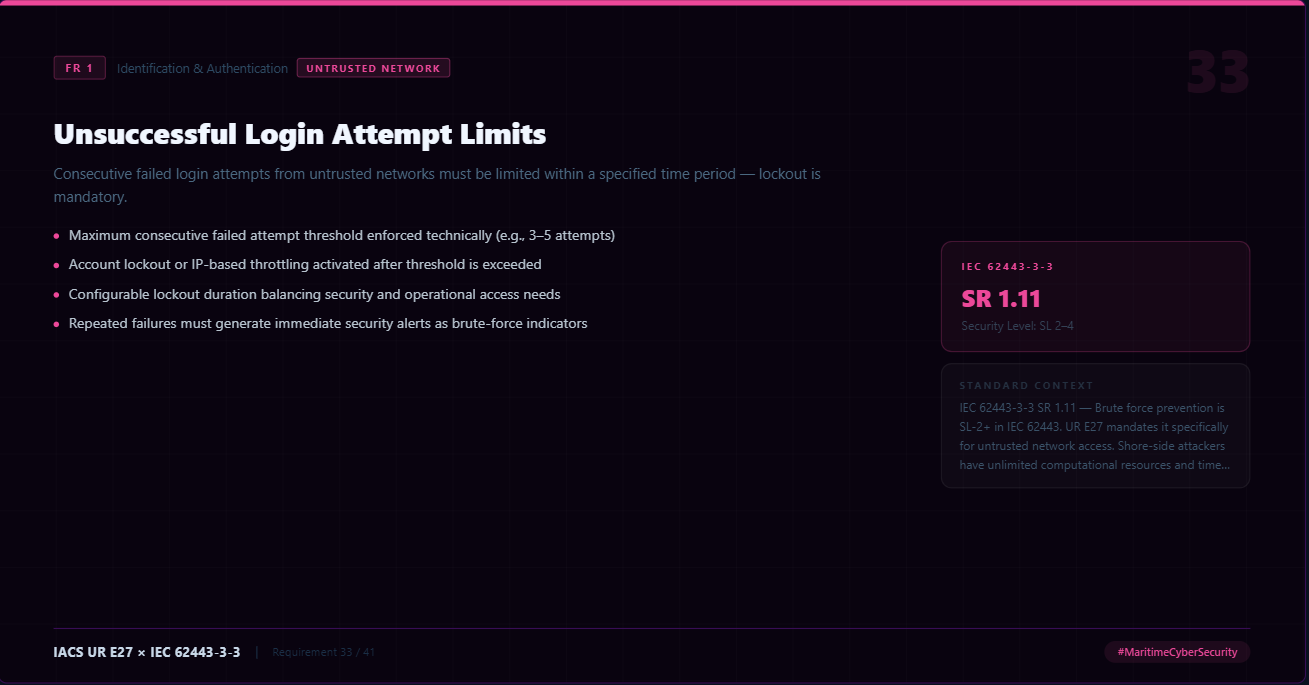

The standard calls for:

A configurable maximum consecutive failure threshold (typically 3–5 attempts)

Automatic lockout or IP-based rate limiting upon threshold breach

Configurable lockout duration to balance security with operational continuity

Immediate alerting on repeated failures as a brute-force indicator



UR E27 applies this specifically to CBS with untrusted network access, closing a gap that UR E26 does not address.



**Implementation Insight 🔒**

The real maritime challenge isn't enabling lockout — it's calibrating it. Set the threshold too low and a legitimate engineer locked out in port at 02:00 becomes an operational crisis. Set it too high and the protection is meaningless. Pairing account lockout with IP-based throttling and out-of-band alerting to the vessel's cybersecurity officer gives you control without crippling access.



How does your organization currently balance brute-force protection with the operational realities of unmanned machinery spaces and remote access support?



IACS UR E27

📌 Post 33/41 in my IACS UR E27 series — breaking down all 41 requirements
