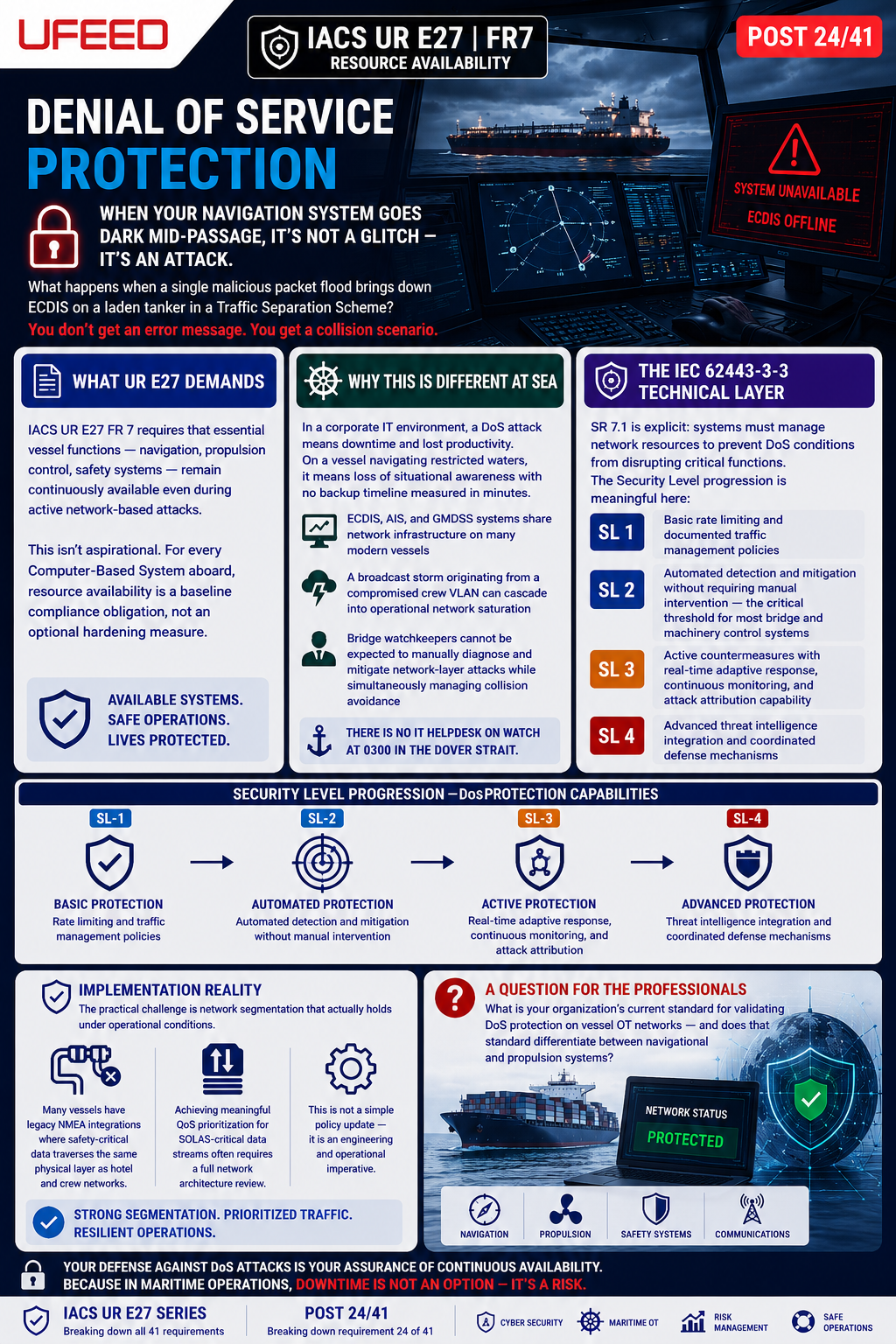

[IACS UR E27] FR7 Resource Availability - Denial of Service Protection

IACS UR E27 - Denial of Service Protection



**A vessel's navigation system goes dark mid-passage — not from a hardware failure, but from a flood of network packets overwhelming the ECDIS. This is not a hypothetical. It is a realistic threat vector that UR E27 was designed to address.**



Denial of Service attacks are among the most operationally dangerous threats to shipboard systems precisely because they require no sophistication to execute and no access to critical systems to cause catastrophic disruption.



---



**What UR E27 Demands**



IACS UR E27 requires that all Computer-Based Systems aboard vessels maintain essential functions during DoS events. Navigation, propulsion control, and safety systems must remain operational regardless of network-based disruption. The standard does not permit "best effort" — availability of safety-critical functions is non-negotiable.



---



**Why This Is Different at Sea** 🚢



On land, a DoS attack against an industrial system is a business continuity problem. On a vessel in confined waters or adverse weather, it becomes a safety-of-life incident within minutes. An overwhelmed network serving the ECDIS, AIS, or integrated navigation system during a port approach or in a Traffic Separation Scheme leaves the bridge team without the tools they depend on. Manual fallback procedures exist, but under high cognitive load, their reliability is not guaranteed. There is no IT helpdesk 200 nautical miles offshore.



---



**The IEC 62443-3-3 Technical Foundation**

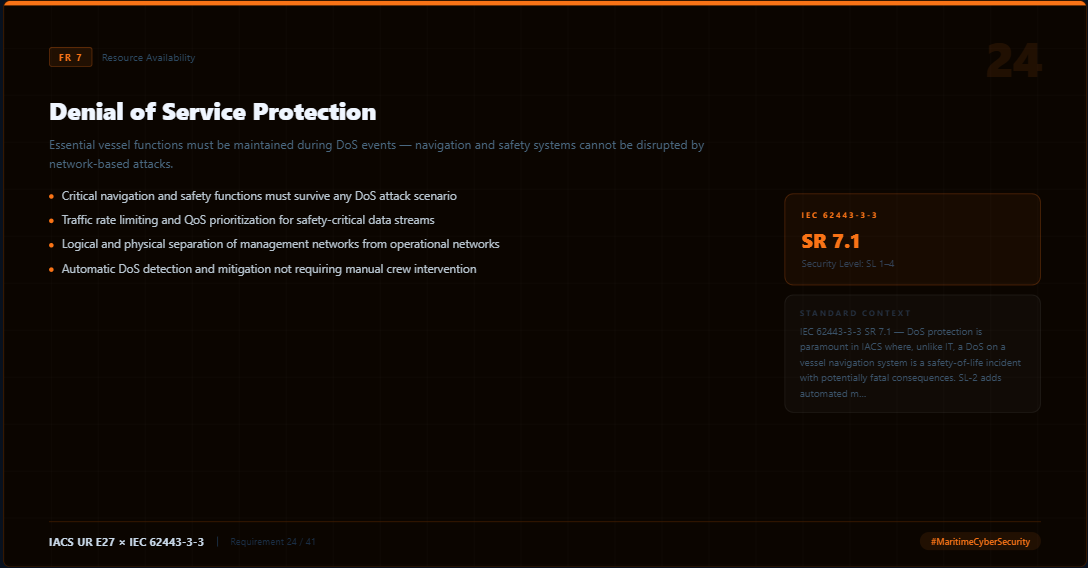

SR 7.1 under Foundational Requirement 7 — Resource Availability — scales protection obligations across four Security Levels:



→ SL 1 establishes baseline DoS protection through traffic controls and network segmentation

→ SL 2 adds automated detection and mitigation, removing dependence on manual crew intervention

→ SL 3 introduces active countermeasures with real-time response capabilities

→ SL 4 demands comprehensive, adaptive protection against sophisticated, coordinated attacks



The critical distinction from IT environments: in IACS, availability is not a tier-three priority behind confidentiality and integrity — it is the primary safety requirement.



---



**Implementation Reality**



One of the most practical and underutilised measures is QoS prioritisation combined with rate limiting at the network boundary between the management VLAN and operational OT networks. Configuring safety-critical data streams — NMEA, radar feeds, dynamic positioning signals — with guaranteed bandwidth allocation ensures they survive broadcast storms or traffic floods originating elsewhere on the vessel network. This configuration is achievable on commercial maritime switches but is rarely implemented at commissioning.



---



What is your experience with network segmentation on integrated bridge systems — is QoS being specified at the design stage, or retrofitted under pressure after an incident?



📌 Post 24/41 in my IACS UR E27 series — breaking down all 41 requirements

#DoSProtection #IACS #URE27 #IEC62443 #MaritimeCyberSecurity #Availability #SOLAS
